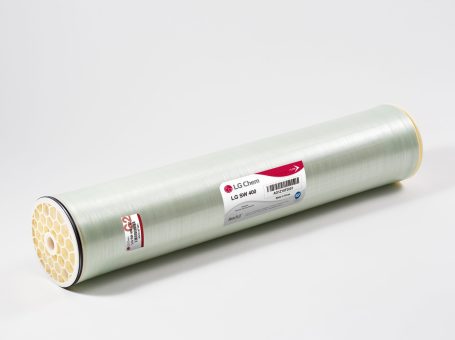

LG SW 440 GR G2
The next generation LG SW G2 membranes have achieved record-breaking salt rejection, improving the product quality up to 45% compared with the conventional technology. With enhanced Thin Film Nanocomposite (TFN) technology, LG SW G2 membranes can significantly reduce the cost of desalination.
LG SW GR (Great Rejection) membranes offer a combination of high rejection and low energy requirements to reduce the total cost of desalination; suitable for high salinity seawater applications.
- Active Membrane Area 440 ft² (41 m²)
- Permeate Flow Rate 8,250 gpd (31.2 m³/d)
- Stabilized Salt Rejection 99.89%
- Minimum Salt Rejection 99.75%
- Boron Rejection 93%
- Feed Spacer 28 mil
- NaCl 32,000 ppm
- Boron 5 ppm
- Pressure 800 psi (55 bar)
- Temperature 25 °C (77 °F)
- pH 8
- Recovery 8%
- Permeate Flow Variation +/-15%
